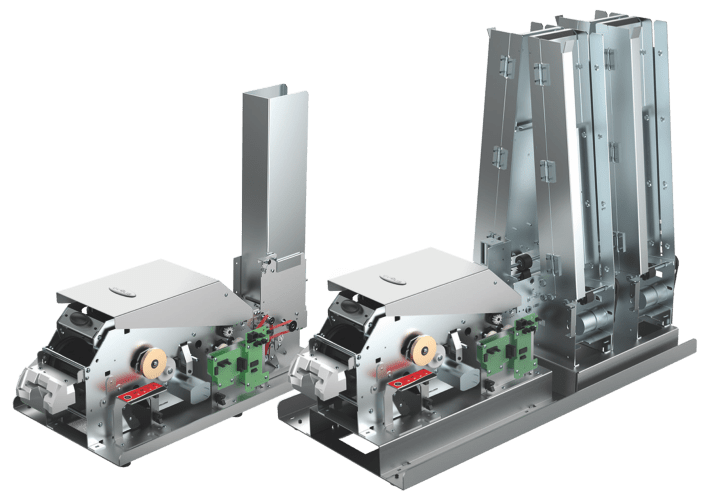

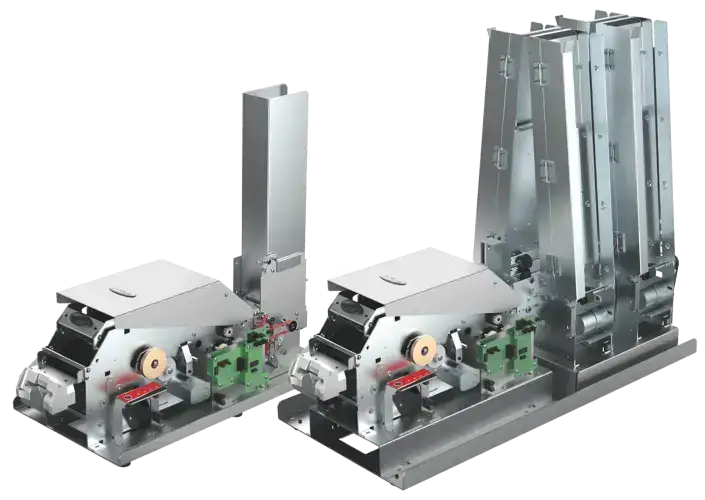

Dankzij de grote invoercapaciteit van de KM500B and KM2000B printers (respectievelijk 500 en 2,000 cards) wordt de frequentie voor het bijvullen van plastic kaarten en printlinten verminderd.

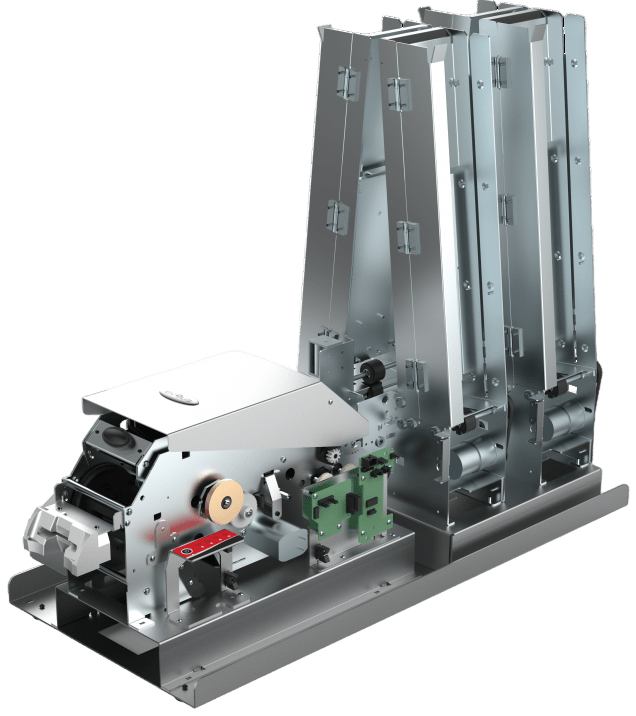

De KM2000B module kan zelfs 4 verschillende designs voorbedrukte kaarten verwerken, naar uw behoefte.
De KM500B en KM2000B oplossingen zijn volledig modulair: printen op zowel 1 als 2 zijden. De machines zijn alvast uitgerust met een encoder voor magneetstripkaarten en ze kunnen worden uitgebreid met encoders voor contact en contactless smart cards.
U kunt eenvoudig het card management configureren: cards teruggave door het gebruik van een exit slot en verschillende opzetmogelijkheden zoals invoer en uitvoer aan de voor- of achterzijde.
Om dagelijks onderhoud te faciliteren en te beperken, bieden de KM500B en KM2000B printers statusmeldingen op afstand betreffende bijvoorbeeld de voorraad verbruiksmaterialen en printerstatus.
Dankzij de Evolis Premium SDK, kunnen de KM500B en KM2000B geïntegreerd worden in uw eigen applicatie en gemonitord worden via een lokaal netwerk of via de cloud.
• Dual-sided printing module
• Edge-to-edge printing
• Color dye sublimation, monochrome thermal transfer
• Magnetic stripe encoder ISO 7811 HiCo/LoCo
• Smart contact station
• Standard 300 x 300 dpi resolution
• 16 MB memory (RAM)
• Single side:
– Color (YMCKO): 30 s per card
– Monochrome: 9 s per card
• Dual side:
– Color (YMCKO-K): 38.5 s per card
• USB (1.0, 1.1, 2.0, 3.0)
• Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)
• Option upon request: serial port

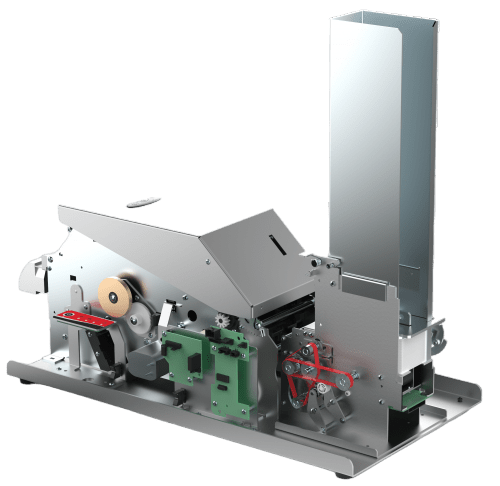

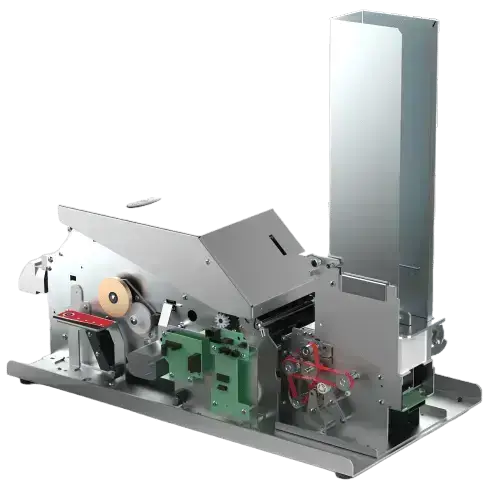

• KM500B: single feeder unit: 500 cards
• KM2000B: 4 x 500-card feeder
• Manual insertion and return with bezel
• Reject slot for defective cards
• Ability to retract unretrieved cards
• Card thickness: 0.76 mm (30 mil)
• Card types: PVC cards, composite PVC cards, PET cards, ABS cards1, special varnished cards1
• Card format: ISO CR80 – ISO 7810 (53.98 mm x 85.60 mm)
• Printer LEDs
• Printer graphical notifications: cleaning alerts, empty/low level ribbon and cards alert…
• Available modules:
– Contact smart card encoder – PC/SC, EMV 2000-1
– Contactless smart card encoder – ISO 14443A, B,ISO15693, MIFARE, DESFire, HID iCLASS
– Other specific encoders upon request
• Internal USB or IP ports
• Options can be combined
• Data encryption for magnetic encoding
• Compatible with Windows® (32/64 bits): XP SP3, Vista, W7, W8, W10
• Mac OS X (from 10.6 onwards)
• Linux upon request
• Evolis Premium Suite®:
– Printer driver
– Evolis Print Center for printer administration and settings
– Evolis Printer Manager for graphical notification2
– 24/7 online support
• Evolis Premium SDK free of charge for remote supervision of the printer, while facilitating and speeding up integration into IT systems
• CE, FCC, ICES, VCCI, CCC
• RoHS
• Standard operating temperature and humidity rate:
– 15° / 30° C (59° / 86° F)
– 20% to 65% non-condensing
• Min / Max operating temperature and humidity rate3:
– 0° / 40° C (32° / 104° F)
– 20% to 65% non-condensing
• Min / Max storage temperature: -5° / +70° C (23° / 158° F)
• Storage humidity rate: 20% to 70% non-condensing
• Operating ventilation: free air
KM2000B: 571 x 300 x 710 mm (22.48’’ x 11.81’’ x 27.95’’)
with feet: H: 579 mm (22.79’’)
• Weight:
KM500B: 11.5 kg (24.25 lbs)
KM2000B: 26.5 kg (57.32 lbs)
